The machine for cold forming splines

The machine for cold forming involute splines is designed by STANEXIM

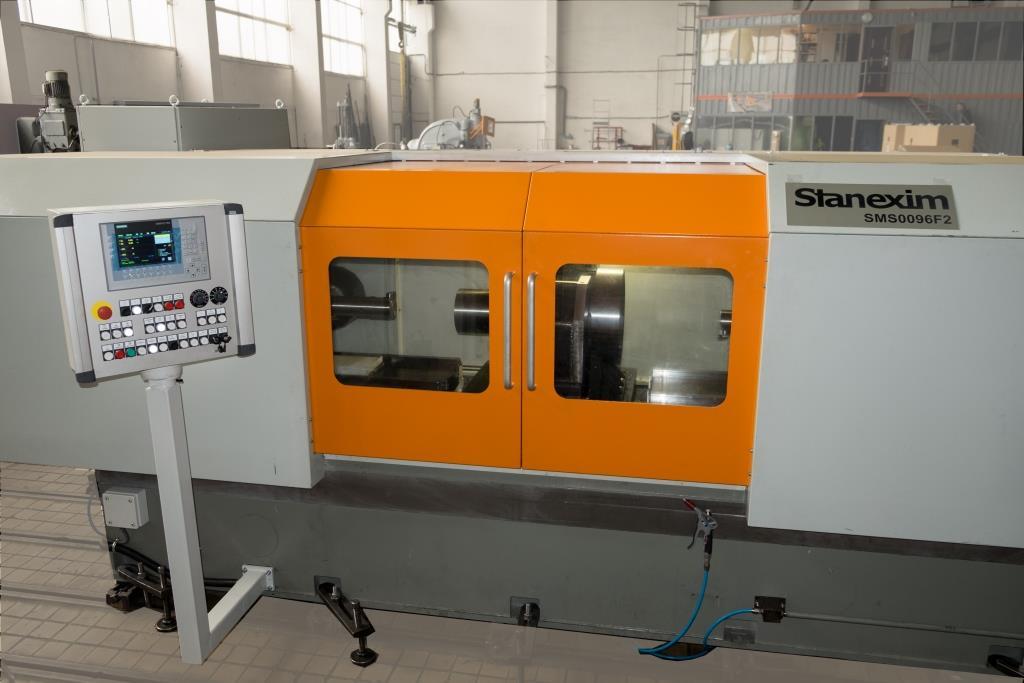

Acceptance tests of the special machine SMS0096F2 were successfully completed at the production site of STANEXIM. The machine is designed for final boring of deep internal holes in the bushings.

Previously, the company ordered the processing of these parts outside or performed it on outdated equipment. In this case there was a problem with the positioning of the part and the accuracy of processing.

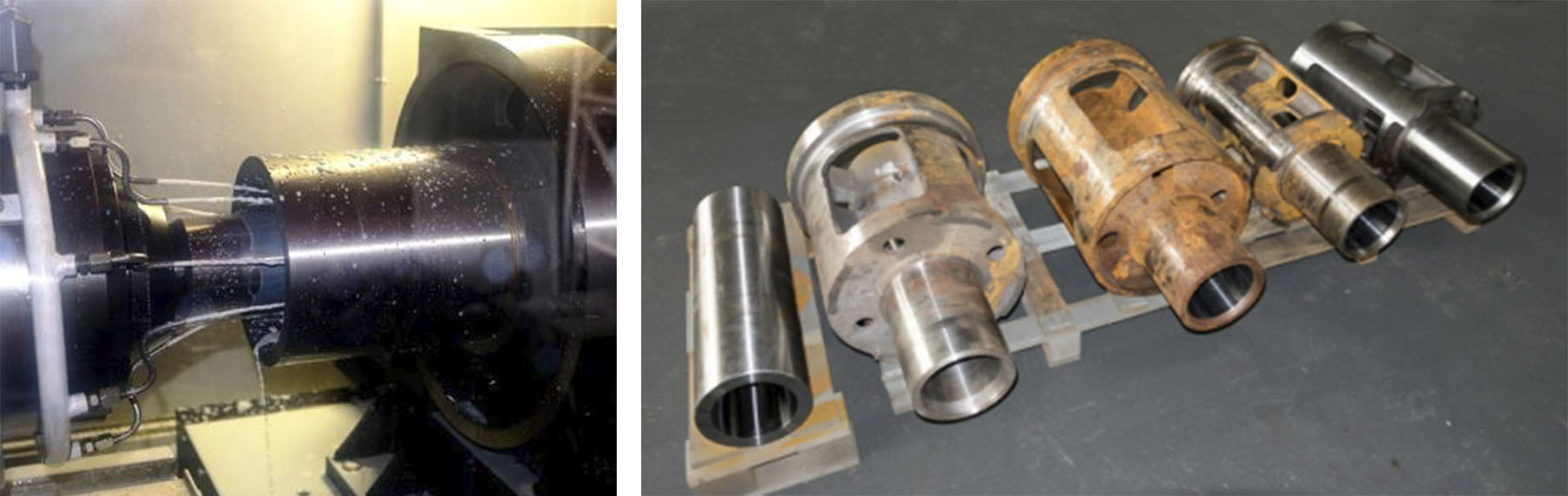

The new machine provides the accuracy of the H6 quality processing with the alignment of the machined holes of 0.05 mm and surface roughness of 1.25 Ra. The machine design provides for sequential processing on both sides, machining diameter 150 mm, machining length 650 mm.
